Automatic Blister Packaging Machine

The automatic blister packaging machine integrates base material heating and forming, product feeding, lidding material heat sealing, batch number or marking, indexing and die-cutting into a continuous process. Blister depth, product feeding, material compatibility and seal quality must be verified with actual samples. Vision inspection, automatic feeding and downstream cartoning are optional per project.

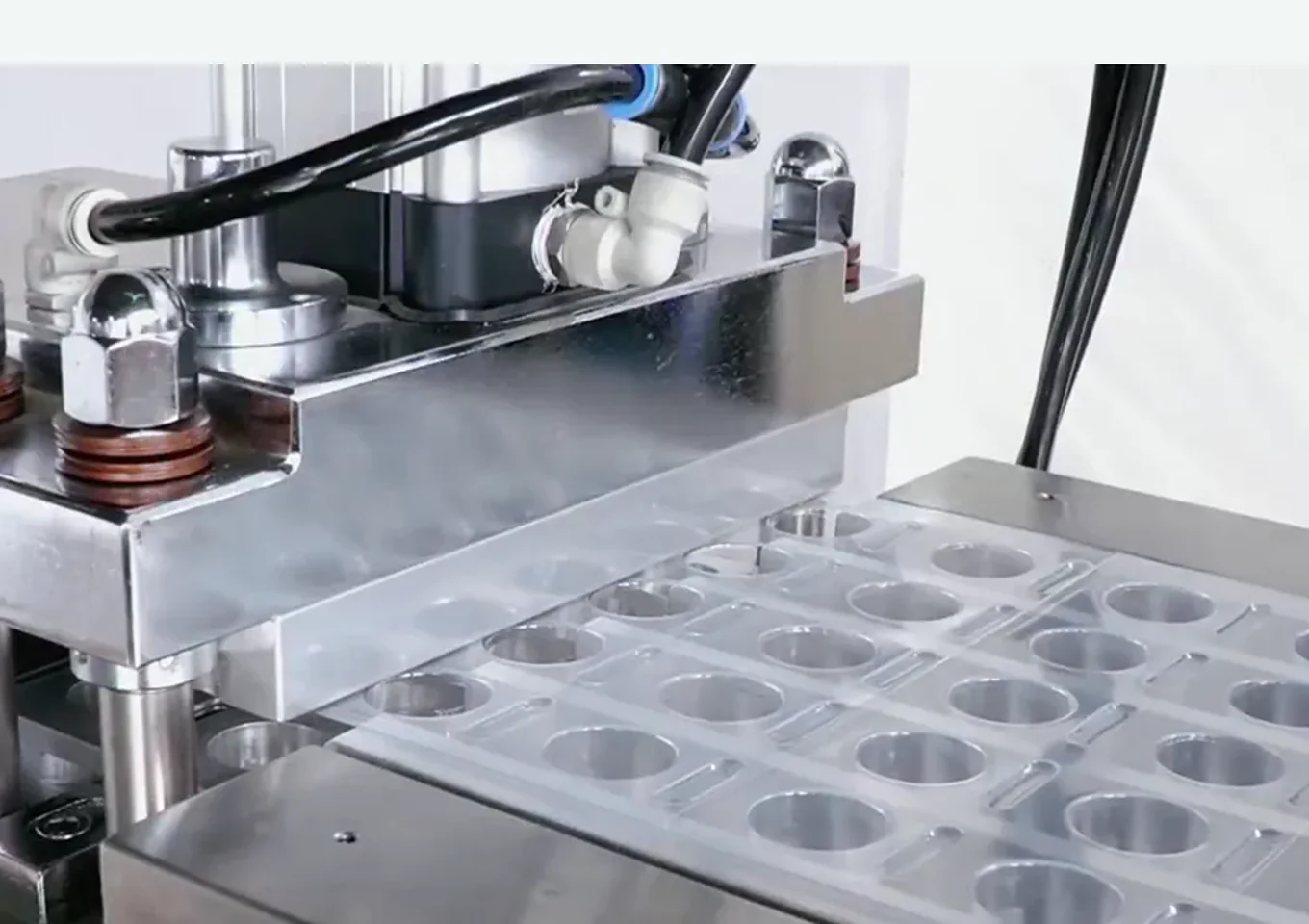

Automatic Blister Packaging Machine CompleteActual machine image showing continuous frame with bottom film unwinding, forming, loading area, top film or lidding material handling, sealing and indexing cutting; cavity and material specifications confirmed per pr...

Technical parameters

Capacity and cycle time: Confirmed based on layout arrangement, forming cooling, product feeding, heat seal dwell, indexing and die-cutting cycle time; no fixed values published without project verifica...
Automation scope: Continuous forming, sealing and die-cutting; automatic product feeding, vision inspection, coding and downstream cartoning are optional per project
Applicable containers or packaging: Tablets, capsules, regular small parts or products that can be oriented into blisters; shape, posture and surface confirmed per actual sample
Applicable products: Regular small parts requiring protection and separation; fragility, adhesion, dust and orientation requirements must be stated
Packaging materials and consumables: Formable base material and matching lidding material; forming temperature, depth, heat seal layer, barrier and printed layout confirmed per material sample
Basic process: Base material unwinding and heating forming, product feeding, lidding material unwinding, heat sealing, optional marking, indexing, die-cutting and discharge
Molds and changeover: Replace forming, heat sealing and die-cutting molds per product and layout; adjust feeding, indexing and material guides
Power, air supply and layout: Confirm equipment dimensions, power, air supply, maintenance space and upstream/downstream interfaces based on heating forming, cooling, heat sealing, indexing die-cutting, feed...

Selection guide

Forming mold, heat seal mold and die-cutting layout are jointly sampled based on actual product and materials
Product feeding method is selected based on shape, orientation, fragility, adhesion and dust conditions
Vision inspection, coding, rejection and downstream cartoning are optional modules
Cycle time, heating, cooling and material utilization are confirmed per layout and configuration

Applications

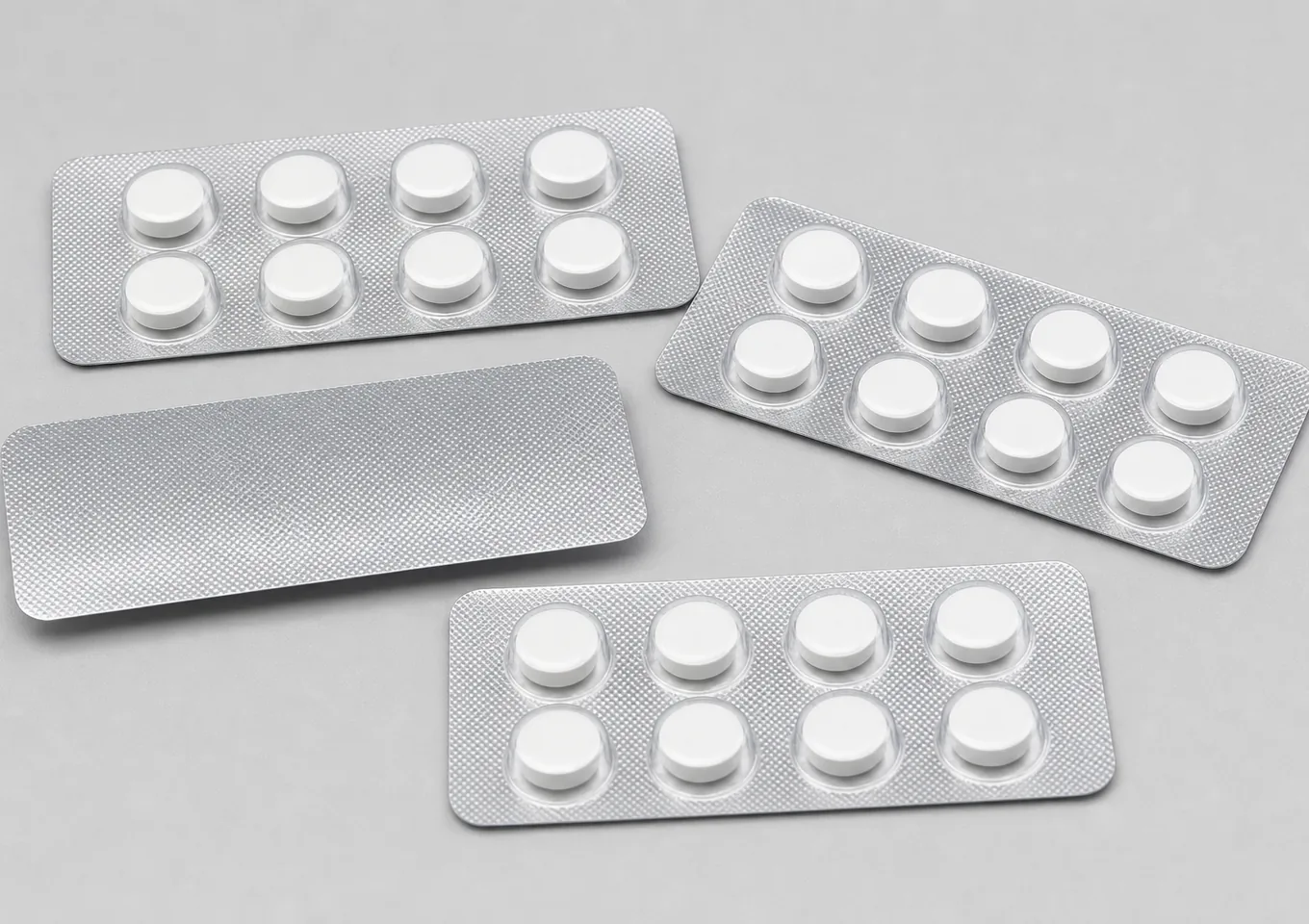

Projects requiring individual blister unit packaging for tablets, capsules or regular small parts
Production lines requiring continuous base material forming, product filling, lidding material sealing and die-cutting
Projects requiring optional vision inspection for product orientation or missing product detection
Blister packaging lines planning to interface with coding, cartoning or data traceability

Frequently Asked Questions

Can the blister machine directly use existing base and lidding materials? Need to check material forming, heat seal layer, thickness, barrier and printed layout, and verify through small samples; cannot judge by mater...
Is automatic feeding standard? Not by default. Product shape, orientation, fragility, adhesion and dust determine the feeding method: vibratory bowl, track, robot or manual assistance.

Send samples and capacity requirements for a clearer solution

Product samples, dimensions, weight, orientation, fragility and surface condition
Base material and lidding material samples, thickness, heat seal layer and barrier data
Finished layout, blister depth, sealing and die-cutting appearance standards
Feeding, inspection, coding, cartoning, target cycle time and site conditions
