Check applicable objects first
Preformed trays, meal boxes, or cups with flat rims and repeatable positioning; shape and depth confirmed with actual samples
Automatic precut film pick-and-place sealing
Automatic Pre-Cut Lid Pick-and-Place Tray Sealer
For preformed trays using pre-cut lids without roll unwinding and trim cutting on the machine. Validate rim flatness and strength, lid size and flatness, static, material direction, heat-seal layer, stack behavior and sheet separation with real tray and lid samples. Multi-compartment or irregular trays require trials, not shape-only selection.

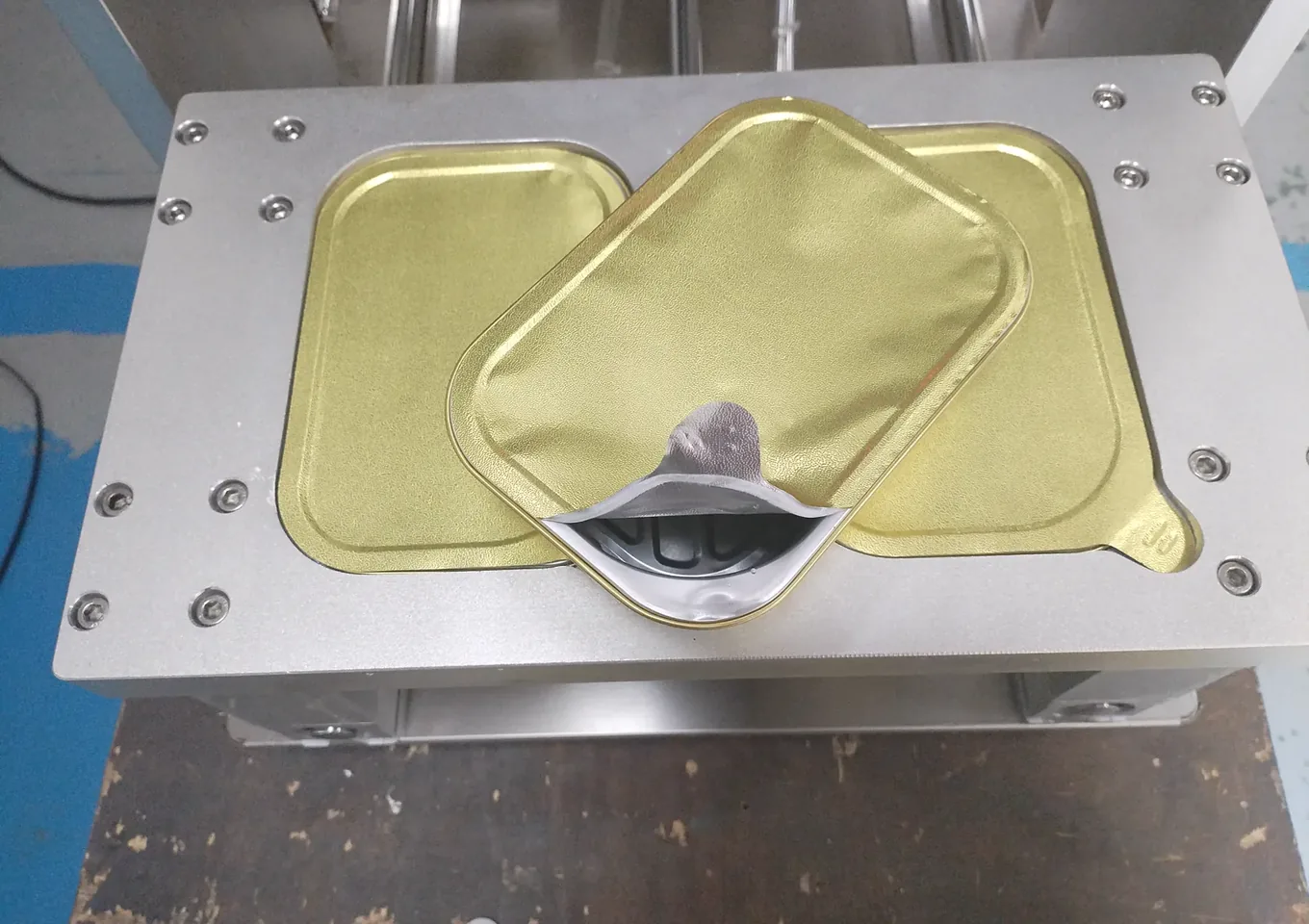

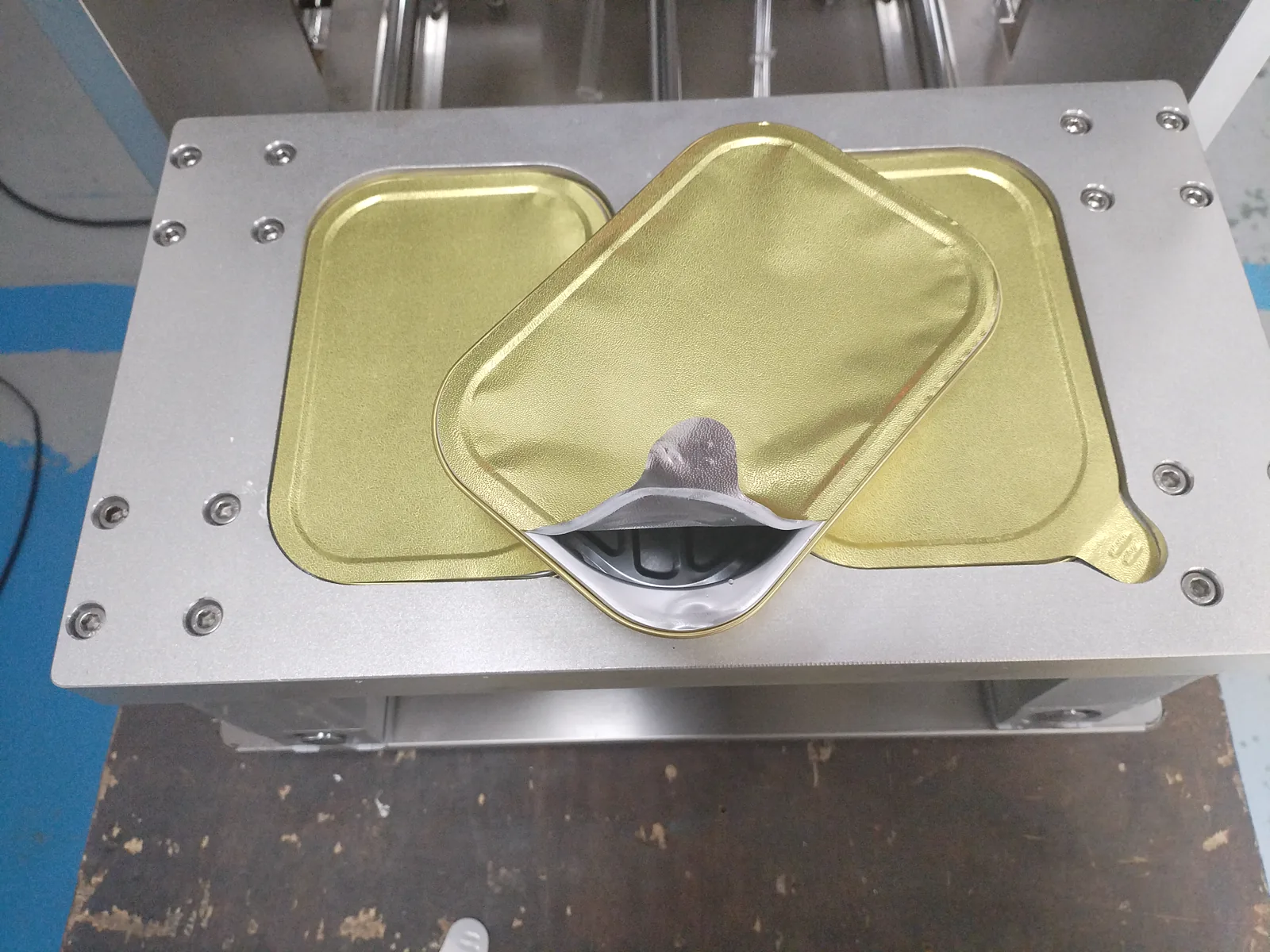

Actual equipment mediaFilm pick-and-place positioningParameters confirmed per project
View actual equipment media

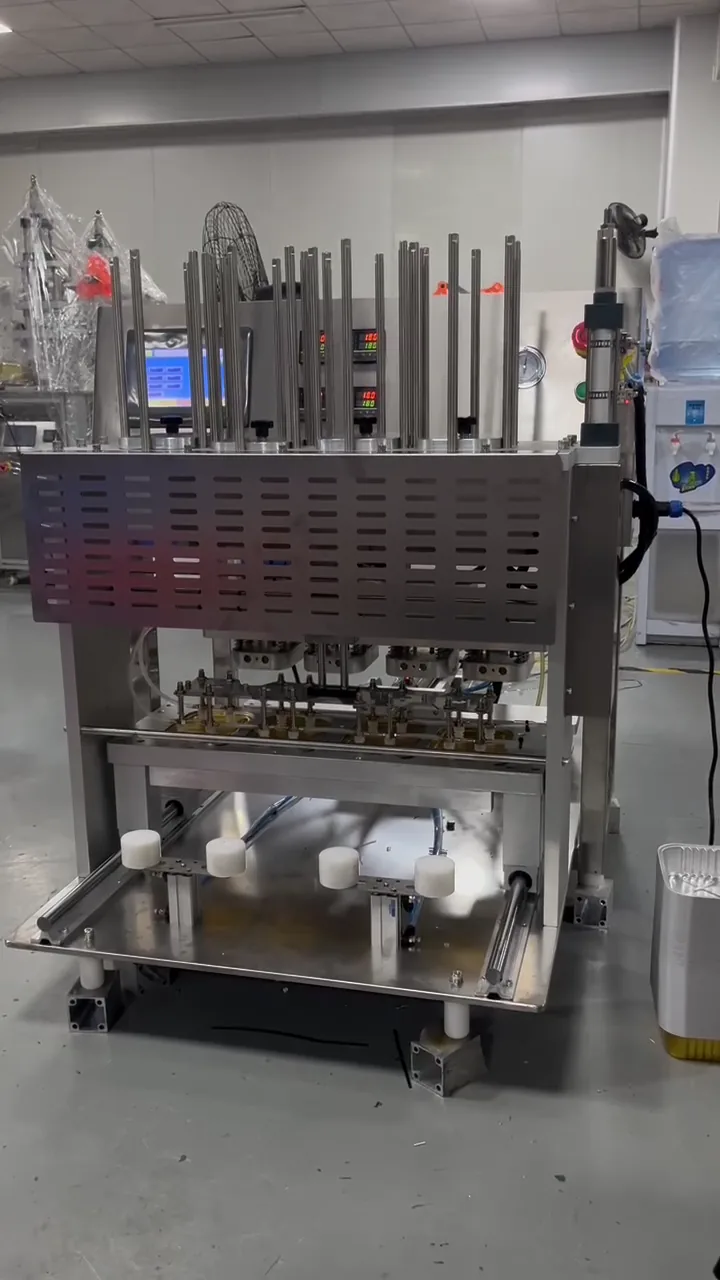

Precut aluminum foil film pick-and-place sealing video
Local vertical machine video showing another multi-cavity fixture configuration: tray loading, precut film pick-and-place, sealing cycle, and peel check. Cavity count, film magazine, and operation method subject to project configuration.
See actual working conditions first
Film separation, pick-and-place, and tray positioning must be tested together
Please provide trays, precut film lids, filled samples, seal appearance, film orientation, target cycle time, and workshop interfaces.
Packaging materials and process must match
Precut film lids; dimensions, warpage, static, print orientation, and heat seal layer must be trial sealed with the tray; tray feeding and positioning, film separation, film pick-and-place, heat sealing, optional inspection, and discharge
Optional modules are not standard
Optional automatic tray feeding, metered filling, film orientation detection, missing film detection, rejection, and downstream conveying.
Parameters confirmed per project
Please provide trays, precut film lids, filled samples, seal appearance, film orientation, target cycle time, and workshop interfaces.
See actual working conditions first
Recommended information before quotation
The more complete the samples, packaging materials, and site information, the easier it is to determine the equipment route, changeover scope, and line integration boundaries.
Film separation, pick-and-place, and tray positioning must be tested together
- Film separation, pick-up, and placement verified against actual film static and warpage
- Tray positioning fixtures and sealing tooling made according to rim shape and allowable deformation
- Automatic tray feeding, filling, orientation inspection, and rejection are optional modules
- Pick-up stability, sealing window, and output confirmed based on tray and film combination
Recommended information before quotation
- Actual tray, rim dimensions, depth, and allowable deformation range
- Precut film lid samples, dimensions, orientation, static electricity, and heat seal layer data
- Rim condition after filling, seal appearance, and leak or peel standards
- Target cycle time, tray feeding and filling requirements, power and air supply, and downstream interfaces
See actual working conditions first
Safe specification parameter range
Please provide trays, precut film lids, filled samples, seal appearance, film orientation, target cycle time, and workshop interfaces.
Output and cycle time
Confirmed based on tray feeding, film separation pick-and-place, positioning, sealing hold, and discharge actions; no fixed values published without project verification
Automation scope
Automatic pick-and-place of precut film and tray sealing; tray feeding, filling, inspection, rejection, and downstream conveying are optional per project
Applicable containers or packaging
Preformed trays, meal boxes, or cups with flat rims and repeatable positioning; shape and depth confirmed with actual samples
Applicable products
Filled food or other products suitable for heat sealing; rim contamination, spillage, temperature, and pressure resistance must be specified
Packaging materials and consumables
Precut film lids; dimensions, warpage, static, print orientation, and heat seal layer must be trial sealed with the tray
Basic process
Tray feeding and positioning, film separation, film pick-and-place, heat sealing, optional inspection, and discharge
Tooling and changeover
Replace or adjust positioning fixtures, film magazine, pick-up components, and sealing tooling according to tray shape and film dimensions
Power, air supply, and layout
Machine dimensions, power, air supply, maintenance space, and upstream/downstream interfaces confirmed based on film pick-up actuator, vacuum pick-up, sealing heating, tray conveying, and optional inspection modules
Common configuration routes
Steps from sample confirmation to delivery
The more complete the samples, packaging materials, and site information, the easier it is to determine the equipment route, changeover scope, and line integration boundaries.
Check rim, heat seal layer, film dimensions, warpage, static, and orientation.
Confirm film separation, pick-up, transfer, and placement accuracy.
Check temperature, pressure, time, appearance, peel, and leak requirements.
Accept based on agreed film supply, trays, cycle time, missing film handling, and changeover standards.
Common configuration routes
Compare precut film, roll film, and rotary tray sealing routes
Pre-cut and roll-film routes differ in sheet separation and positioning, roll unwinding and trim cutting, changeover and long-term material supply, not merely automatic versus semi-automatic.
Precut film pick-and-placeSuitable for precut film; focus on verifying separation, orientation, pick-up, and positioning.
Roll film tray sealingSuitable for continuous roll film; requires film feeding, positioning, and cutting structure.

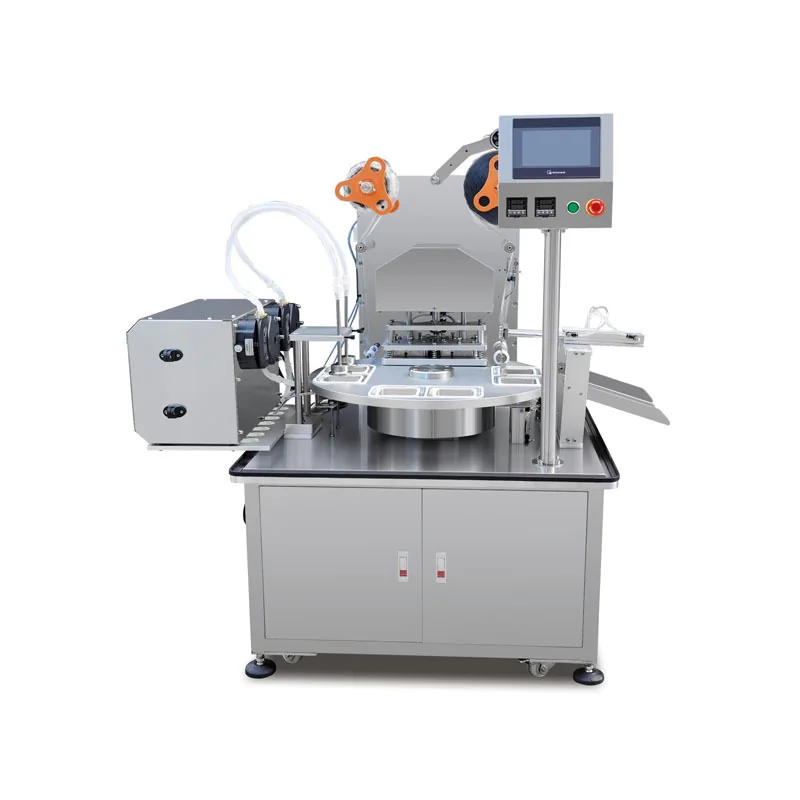

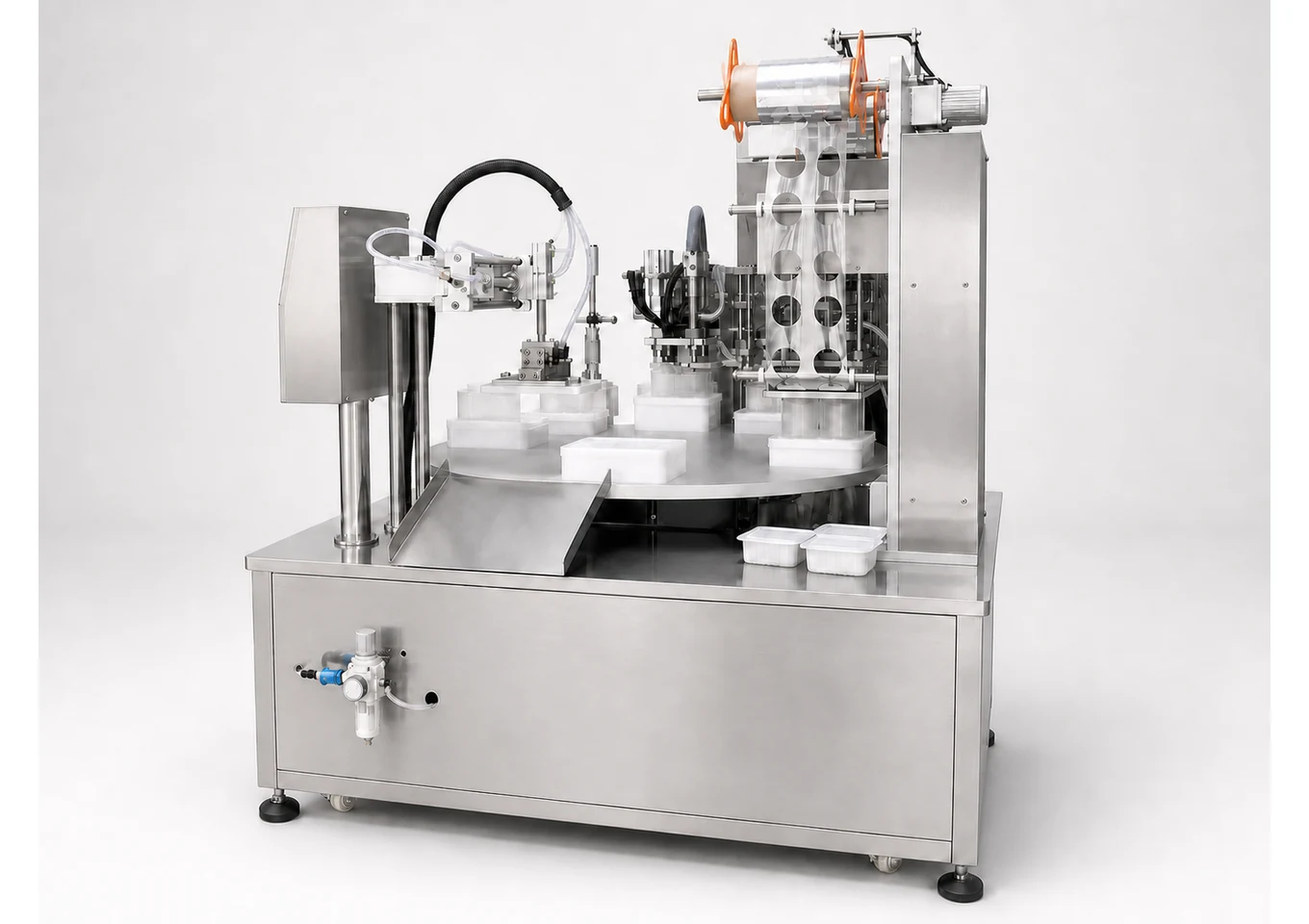

Rotary multi-stationSuitable for manual or automatic loading/unloading combined with multiple stations; evaluated based on cycle time and space.
Automatic precut film pick-and-place sealing
Pre-cut and roll-film routes differ in sheet separation and positioning, roll unwinding and trim cutting, changeover and long-term material supply, not merely automatic versus semi-automatic.
See actual working conditions first
Frequently Asked Questions
Please provide trays, precut film lids, filled samples, seal appearance, film orientation, target cycle time, and workshop interfaces.
Can film lids with static or warpage still be picked and placed automatically?
Actual testing and optimization of film supply, separation, pick-up, and environmental conditions are required; severe warpage or sticking may require material adjustment or additional auxiliary structures.
Can it also seal with roll film?
The film supply, positioning, and cutting structures differ between the two film routes; compatibility on the same machine depends on the overall design and cannot be assumed.
Send samples and requirements
Confirm samples, packaging materials, and process first, then finalize configuration
Send tray and pre-cut lid samples, rim dimensions and photos, lid face and seal-layer direction, stack method, product, seal acceptance, target cycle, upstream/downstream needs and layout.
Actual tray, rim dimensions, depth, and allowable deformation rangePrecut film lid samples, dimensions, orientation, static electricity, and heat seal layer dataRim condition after filling, seal appearance, and leak or peel standardsTarget cycle time, tray feeding and filling requirements, power and air supply, and downstream interfaces
