Verify applicable objects first
Flat pouches, stand-up pouches, zipper pouches, and similar premade pouches; shaped pouches and special mouths require actual pouch testing
Rotary multi-station pouch packaging

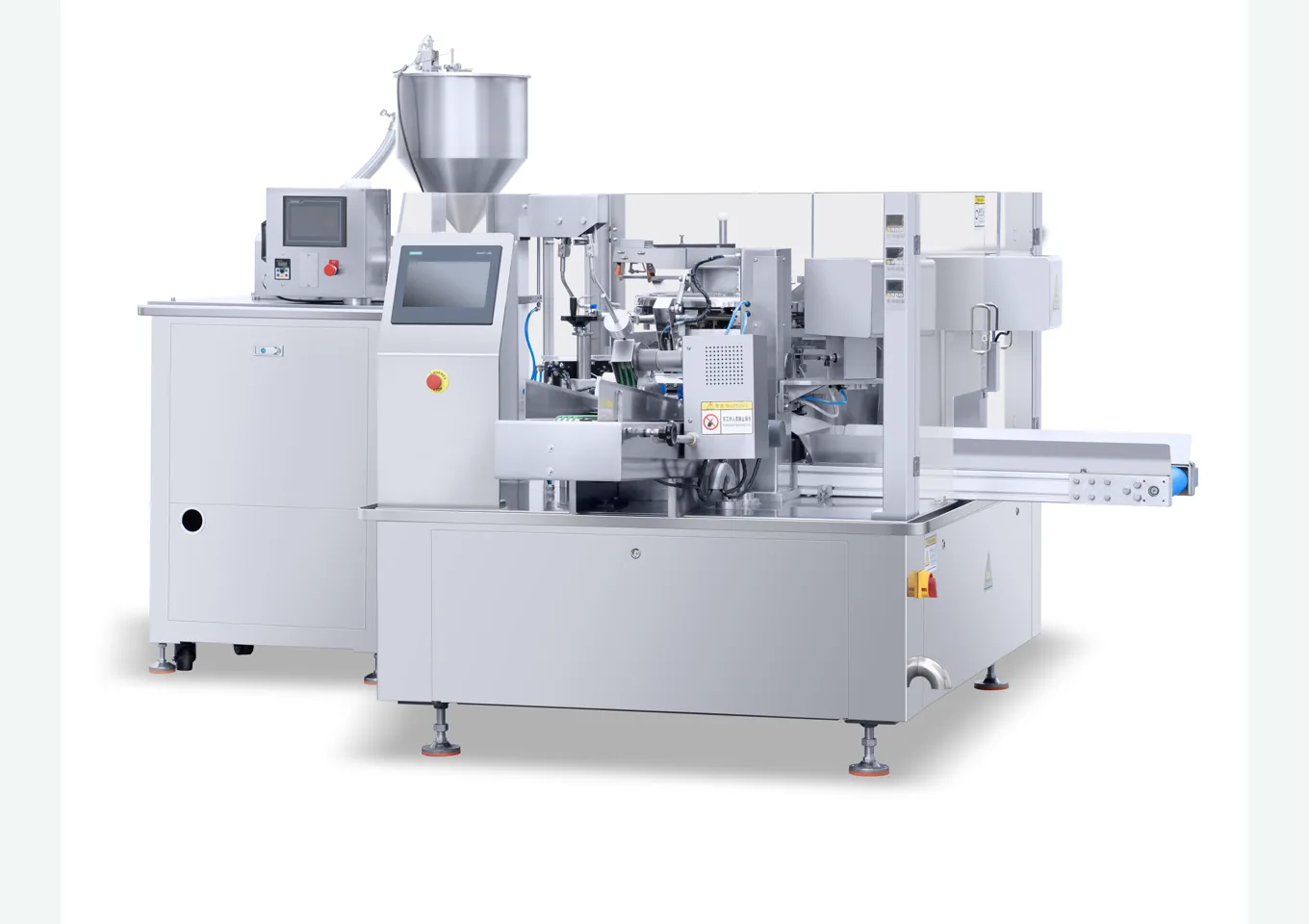

Rotary Premade Pouch Packing Machine
For flat, stand-up, zipper and similar heat-sealable premade pouches. Send empty and filled pouch samples, dimensions, mouth features, product condition, dosing accuracy, seal requirement and target cycle. Shaped pouches, spouted pouches and products that contaminate the seal area require real pouch trials.
Actual equipment materialsRotary station processParameters confirmed per project
First look at actual working conditions
Pouch type and each station action must be verified item by item
Please provide empty pouches, filled pouches, product, target quantity, pouch mouth requirements, changeover list, target speed, and site layout.
Match packaging materials and process
Heat-sealable premade pouches; pouch width, length, zipper, hanging hole, spout, and heat seal layer confirmed per sample; pouch magazine feeding, bag picking, opening, optional dosing filling, mouth finishing, heat sealing, cooling, and discharge
Optional modules are not standard
Optional: liquid pump, auger, combination weigher, feeding, zipper opening, coding, inspection, rejection, and conveying.
Parameters confirmed per project
Please provide empty pouches, filled pouches, product, target quantity, pouch mouth requirements, changeover list, target speed, and site layout.
First look at actual working conditions
Information recommended before quotation
The more complete the samples, packaging materials, and site information, the easier it is to determine the equipment route, changeover range, and line integration boundaries.
Pouch type and each station action must be verified item by item
- Rotary stations sequentially perform bag picking, opening, filling, finishing, and heat sealing

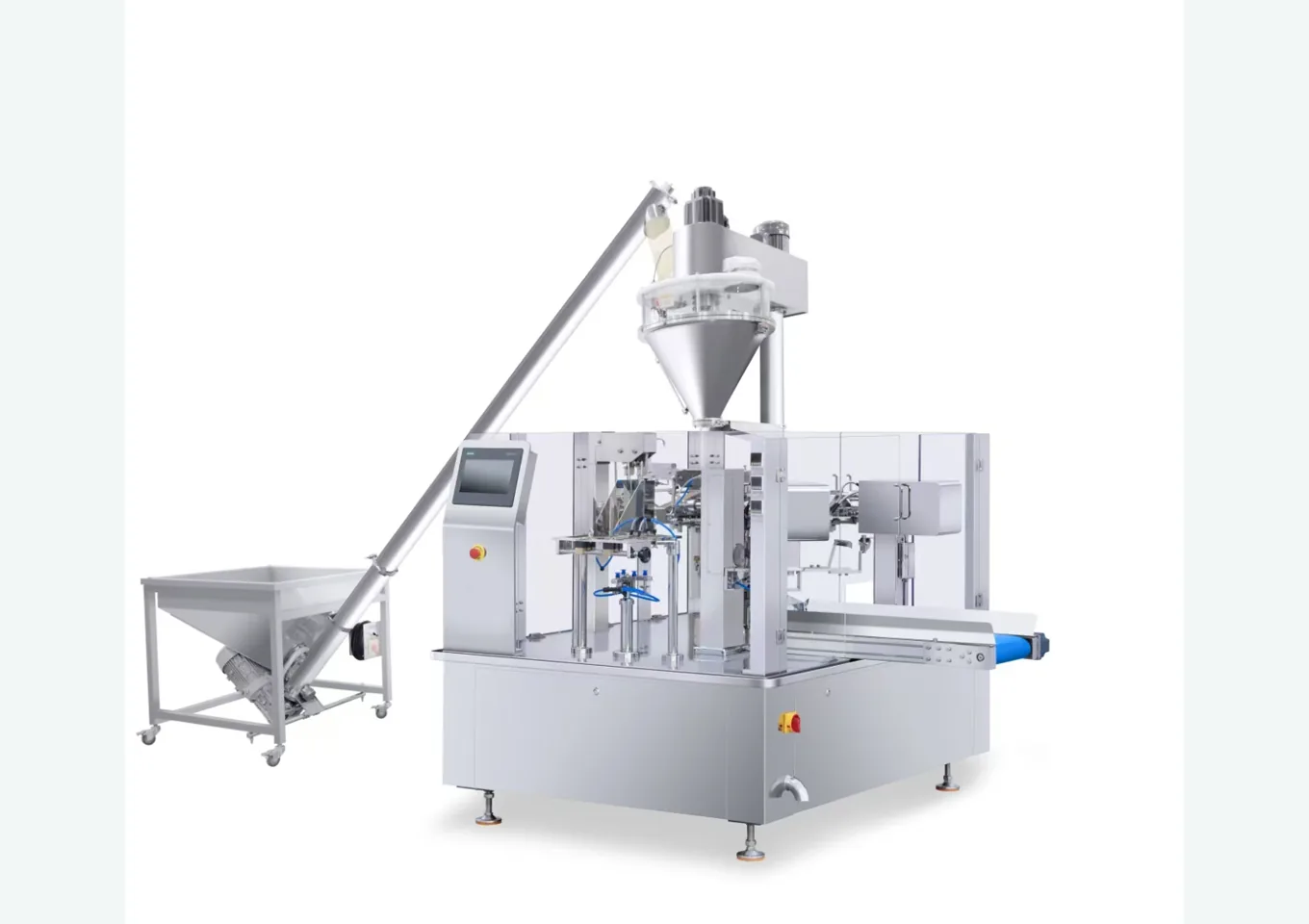

- Dosing and feeding systems are matched to liquid, powder, granular, or small item products respectively
- Zipper opening, coding, inspection, and rejection are confirmed as optional modules
- Number of stations, speed, and changeover range are determined by pouch samples, product, and configuration
Information recommended before quotation
- Empty and filled pouches, pouch dimensions and special structures
- Product samples, target quantity, flowability, and cleanliness requirements
- Process steps, whether coding/inspection is needed, and rejection handling
- Target speed, changeover list, feeding method, and site interfaces
First look at actual working conditions
Safe parameter specification range
Please provide empty pouches, filled pouches, product, target quantity, pouch mouth requirements, changeover list, target speed, and site layout.
Capacity and speed
Confirmed based on number of stations, opening stability, dosing time, mouth finishing, and heat sealing hold time; no fixed values are published without project validation
Automation scope
Rotary multi-station automatic pouch feeding and sealing; dosing, feeding, inspection, coding, and rejection are selected per project
Applicable containers or packaging
Flat pouches, stand-up pouches, zipper pouches, and similar premade pouches; shaped pouches and special mouths require actual pouch testing
Applicable products
Liquids, pastes, powders, granules, or regular small items; dosing and feeding method selected according to product
Packaging materials and consumables
Heat-sealable premade pouches; pouch width, length, zipper, hanging hole, spout, and heat seal layer confirmed per sample
Basic process
Pouch magazine feeding, bag picking, opening, optional dosing filling, mouth finishing, heat sealing, cooling, and discharge
Tooling and changeover
Adjust pouch magazine, pick-up suction cups, clamping width, opening device, filling chute, sealing position, and program according to pouch type
Power, air supply, and layout
Confirm machine dimensions, power, air supply, maintenance space, and upstream/downstream interfaces based on rotary main unit, dosing and feeding interfaces, sealing area, maintenance space, and finished product conv...
Common configuration routes
Steps from sample confirmation to delivery
The more complete the samples, packaging materials, and site information, the easier it is to determine the equipment route, changeover range, and line integration boundaries.
Check bag picking, clamping, opening, zipper, and sealing areas.
Select dosing, filling, and refill interfaces according to product.
Check each station's action, missing bag/material, and abnormal handling logic.
Accept according to agreed pouch samples, product, speed, sealing, and changeover requirements.
Common configuration routes
Compare rotary pouch feeding, horizontal pouch feeding, and compact three-station solutions
Rotary premade-pouch, horizontal vacuum pouch and rollstock form-fill-seal routes differ by pouch source, product behavior and seal-area contamination, not speed alone.
Rotary multi-stationDistributes packaging actions across multiple rotary stations, suitable for projects with relatively complete process steps.
Horizontal parallel pouch feedingSuitable for dual-channel or multi-channel parallel routes; focus on checking pouch path and dosing distribution.
Compact three-stationSuitable for projects with simplified processes or limited space; automation boundaries must be clearly defined.
Rotary multi-station pouch packaging
Rotary premade-pouch, horizontal vacuum pouch and rollstock form-fill-seal routes differ by pouch source, product behavior and seal-area contamination, not speed alone.
First look at actual working conditions
Frequently Asked Questions
Please provide empty pouches, filled pouches, product, target quantity, pouch mouth requirements, changeover list, target speed, and site layout.
Can the rotary pouch feeder package zipper pouches?
It can be evaluated, but bag picking, zipper pre-opening, opening, and clamping positions must be verified; special zippers or shaped pouches require actual pouch samples for testing.
When changing products, is it only necessary to clean the dosing system?
Also check the hopper, filling tube, pouch mouth area, and any parts that may contact the product; the specific disassembly and cleaning scope is determined by hygiene and cross-contamination requirements.
Send samples and requirements
Confirm samples, packaging materials, and process first, then determine the final configuration
Send empty and filled pouches, dimensions, mouth and zipper or spout details, product condition, fill weight, dosing accuracy, seal acceptance, target cycle and plant layout.
Empty and filled pouches, pouch dimensions and special structuresProduct samples, target quantity, flowability, and cleanliness requirementsProcess steps, whether coding/inspection is needed, and rejection handlingTarget speed, changeover list, feeding method, and site interfaces
