Tabletop Sealing Machine

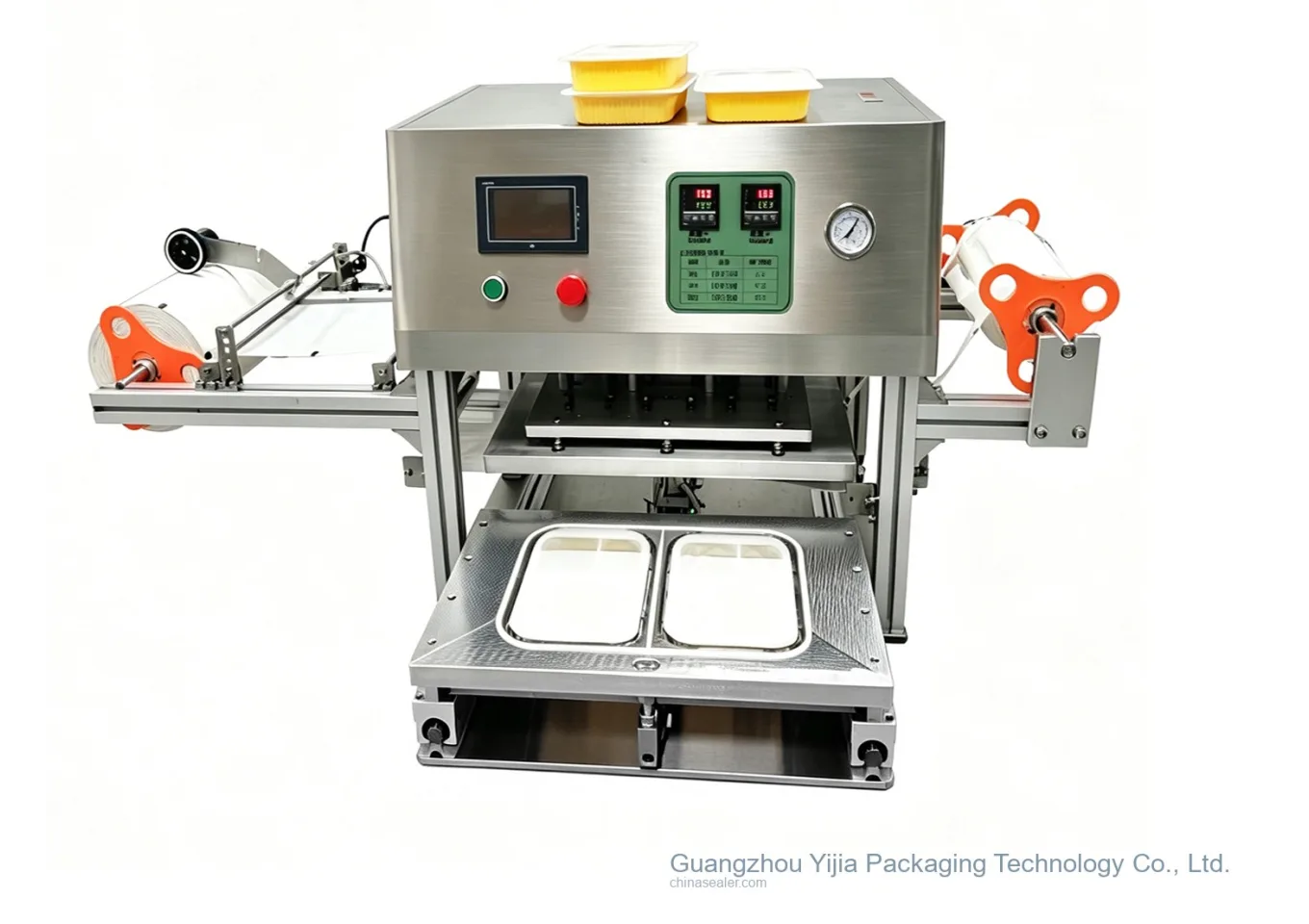

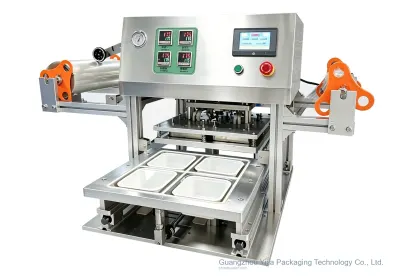

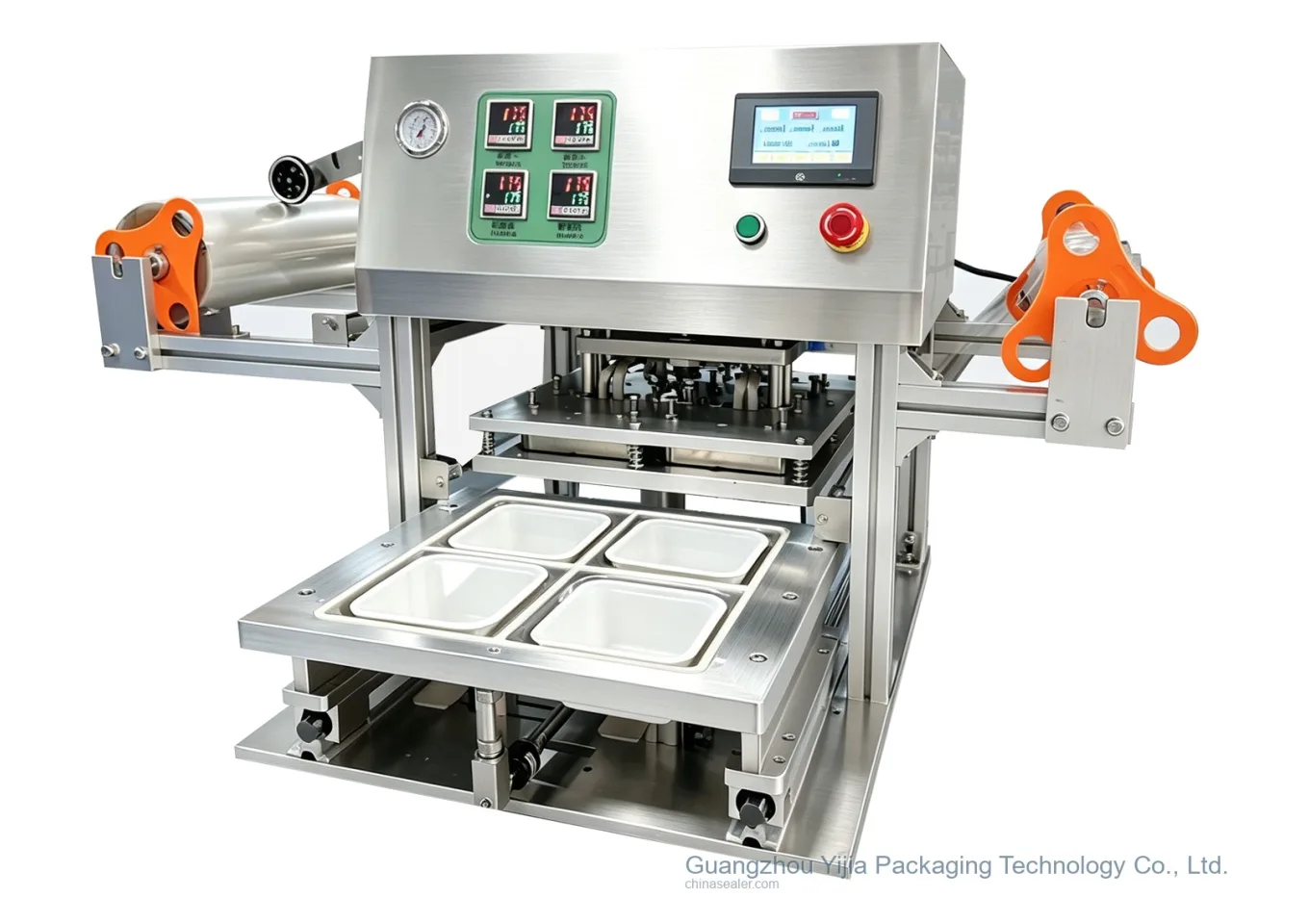

Desktop Multi-Compartment Lunch Box Sealer
Desktop Multi-Compartment Lunch Box Sealer is configured for Meal box / tray heat sealing on PP partitioned meal boxes, cooked food trays, prepared meal boxes.
Technical parameters
- Model
- YJ-FM-TS100
- Model / Identity
- Cooked food; Prepared dishes; Fast food; Braised snacks; Fresh-cut produce; Soy products; Salad; Meal box food
- Standard / Custom
- Standard machine / Custom tooling
- Standard speed / Capacity
- Confirmed based on box size, number of compartments, film material and operation cycle; typical configuration approx. 300-600 boxes/hour.
- Structure / Automation
- Semi-automatic
- Applicable containers / Packaging forms
- Boxes; Cups; Trays; Meal boxes; Bowls; Paper cups; Irregular containers
- Applicable size range
- Confirmed according to meal box mouth size, number of compartments, box height and sealing edge width.
- Applicable materials / Contents
- Sauces; Powders; Pastes; Granules; Food; Salad dressing; Cosmetics; Salad; Soy products; Fresh-cut produce; Fast food; Braised foods; Cooked foods; Prepared dishes; Daily chemic...
- Applicable packaging materials / Consumables
- Roll film; Pre-cut film; Easy-tear film; Composite heat-seal film; Custom printed film; Heat-seal film; PET film; PP film; PE film; Composite film; Aluminum foil film
- Core process
- Heat sealing
- Tooling / Changeover method
- Configure dedicated tooling or change parts according to meal box size, number of compartments and mouth shape.
- Power supply / Air supply
- 220V; 110V; configured per export destination; requires air supply

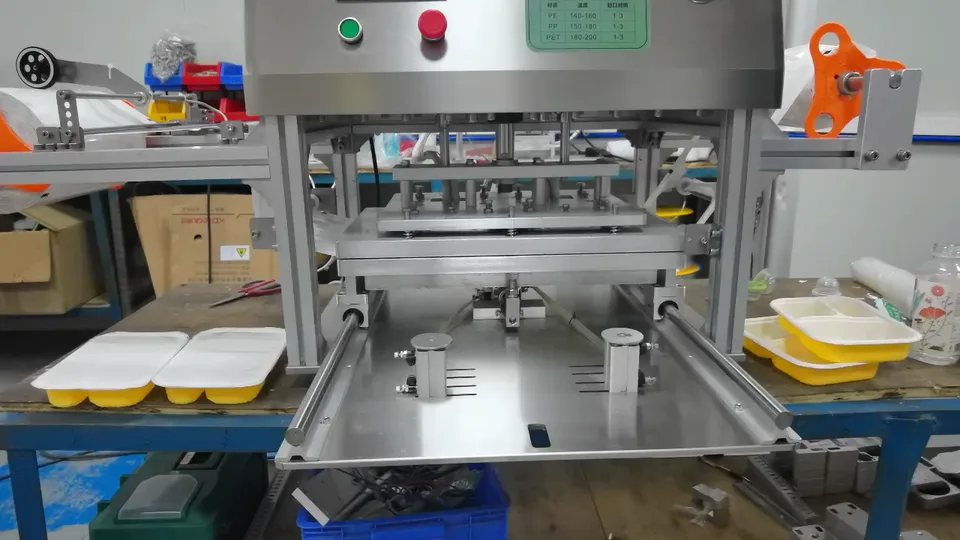

Desktop Multi-Compartment Lunch Box Sealer Selection Reference
Used to verify machine structure, samples, and configuration; final subject to project confirmation documents.
Selection guide
- Tooling configured according to box opening dimensions, number of compartments, and sealing edge
- Supports testing of roll film, pre-cut film, easy-tear film, and other heat sealing consumables
- Suitable for PP partitioned lunch boxes, deli trays, and prepared meal containers
- Primarily used as a standalone machine; feeding/discharge integration can be evaluated per project
Applications
- Multi-compartment lunch box sealing for central kitchens and fast food catering
- Heat sealing of deli, braised, soy products, and prepared meal trays
- Small-batch sampling or fixed-specification lunch box production
- For export projects, configuration is confirmed based on voltage, film material, and spare parts requirements
Frequently Asked Questions
- Can you quote based on a standard machine directly? We can provide a reference range first, but a formal quote requires lunch box samples, box opening dimensions, number of compartments, film material, and target output.
- Why do you need lunch box and film samples? The tooling, temperature, pressure, and sealing appearance are all affected by the box shape and film material. Sample testing reduces rework.
- Is this machine suitable for integration into a production line? Default configuration is for standalone use; if integration with feeding, discharge, coding, or upstream/downstream equipment is required, separate eval...
Send samples and capacity requirements for a clearer solution
- Lunch box sample or clear photos
- Box opening dimensions, number of compartments, box height
- Sealing film sample or film specifications
- Product state and weight per box
- Target output and shifts
- Power supply, air supply, on-site space
Suitable for PP multi-compartment meal boxes, cooked food trays, and prepared meal boxes. First confirm tray-rim size, compartment count, film material, sample condition, and ta...
Suitable for PP multi-compartment meal boxes, cooked food trays, and prepared meal boxes. First confirm tray-rim size, compartment count, film material, sample condition, and ta...
For sandwich packaging, first confirm refrigeration conditions, shelf life, display method, and output volume, then decide on tray sealing, MAP, labeling, or downstream coding.
Non-standard container sealing should not be selected only by machine model. First confirm the container rim shape, film type, and whether samples are available, then decide bet...
Desktop Multi-Compartment Lunch Box Sealer: Meal Box Sealing; Choose ordinary heat sealing or MAP according to the shelf-life target. Confirm tray shape, film material, and capa...
Desktop Multi-Compartment Lunch Box Sealer: Feeding; Used to convey empty trays to the sealing station; can be configured with a tray destacker if needed; Food-grade Conveyor Li...
Desktop Multi-Compartment Lunch Box Sealer: Confirm tray, film, and label samples; Send sample photos and dimensions first. We will evaluate tooling, sealing parameters, and lab...
Desktop Multi-Compartment Lunch Box Sealer: Sample and container confirmation; Use physical samples to confirm box opening size, rim flatness, film compatibility, and sealing-pa...
Related products
Bench-top Rollstock Tray Sealer
Bench-top Rollstock Tray Sealer is configured for Cup/box/tray heat sealing on PP cups, meal boxes, trays, multi-comp...
Small-Diameter Cup Sealer SGP-03
Small-Diameter Cup Sealer SGP-03 - actual samples, packaging material and output target for SGP-03
Tray MAP Sealer
Tray MAP Sealer is configured for Vacuum, gas flushing, and heat sealing on PP cups, meal boxes, trays, multi-compart...
Manual-Press Cup and Tray Sealing Machine
This manual-press machine seals cups, bowls or trays with roll film. The operator loads and removes each container an...
Chain Conveyor Cup/Tray Continuous Sealing Line (Optional Filling)
Suitable for continuous positioning conveying and heat sealing of preformed cups, boxes, and trays. The gallery inclu...

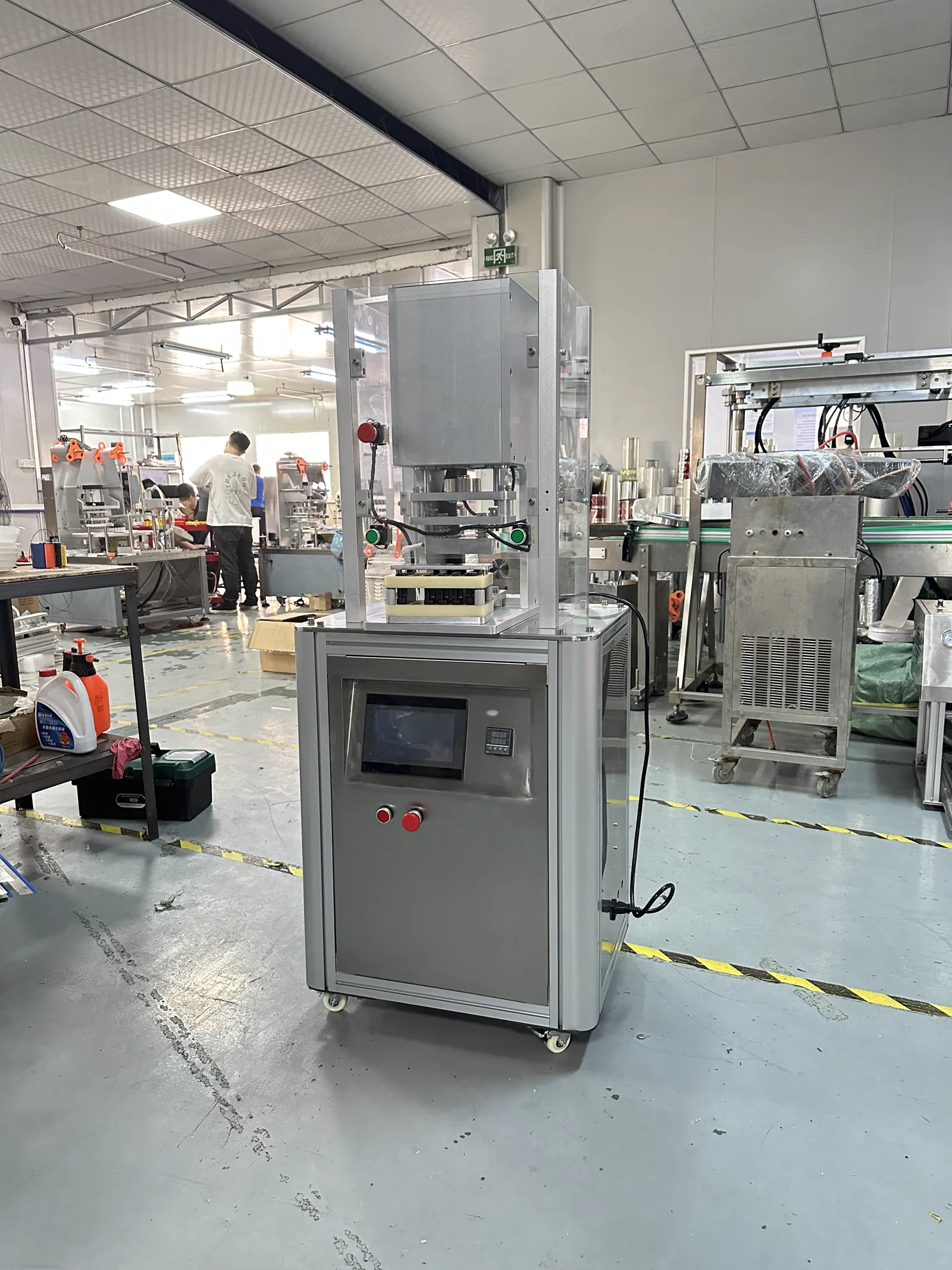

Servo High-Speed Multi-Cavity Sealing Machine
