Filling / Dosing Equipment

Liquid Filling Machine

Liquid Filling Machine is configured for Quantitative filling of materials on Bottles, pails, cans, flexible pouches.

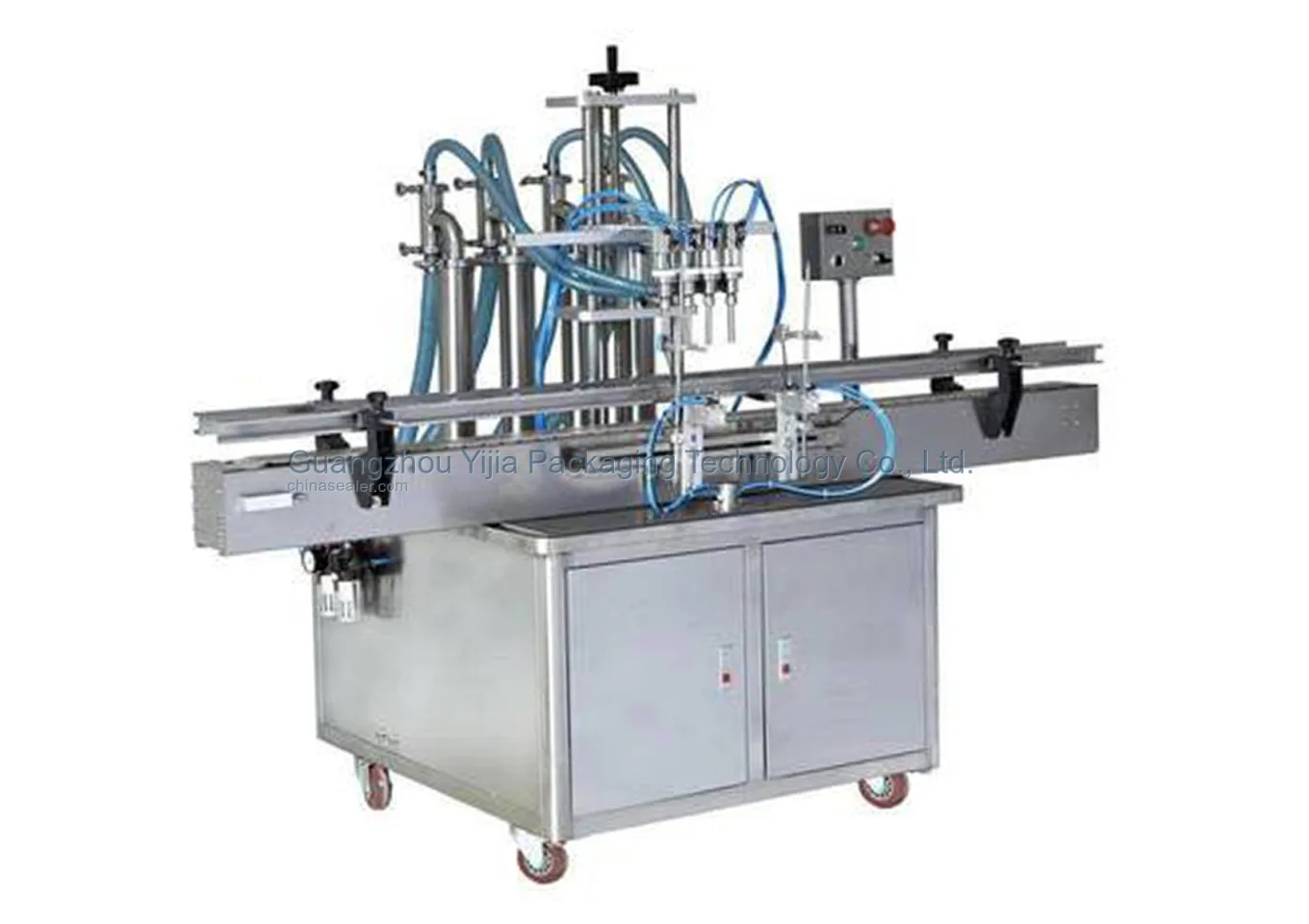

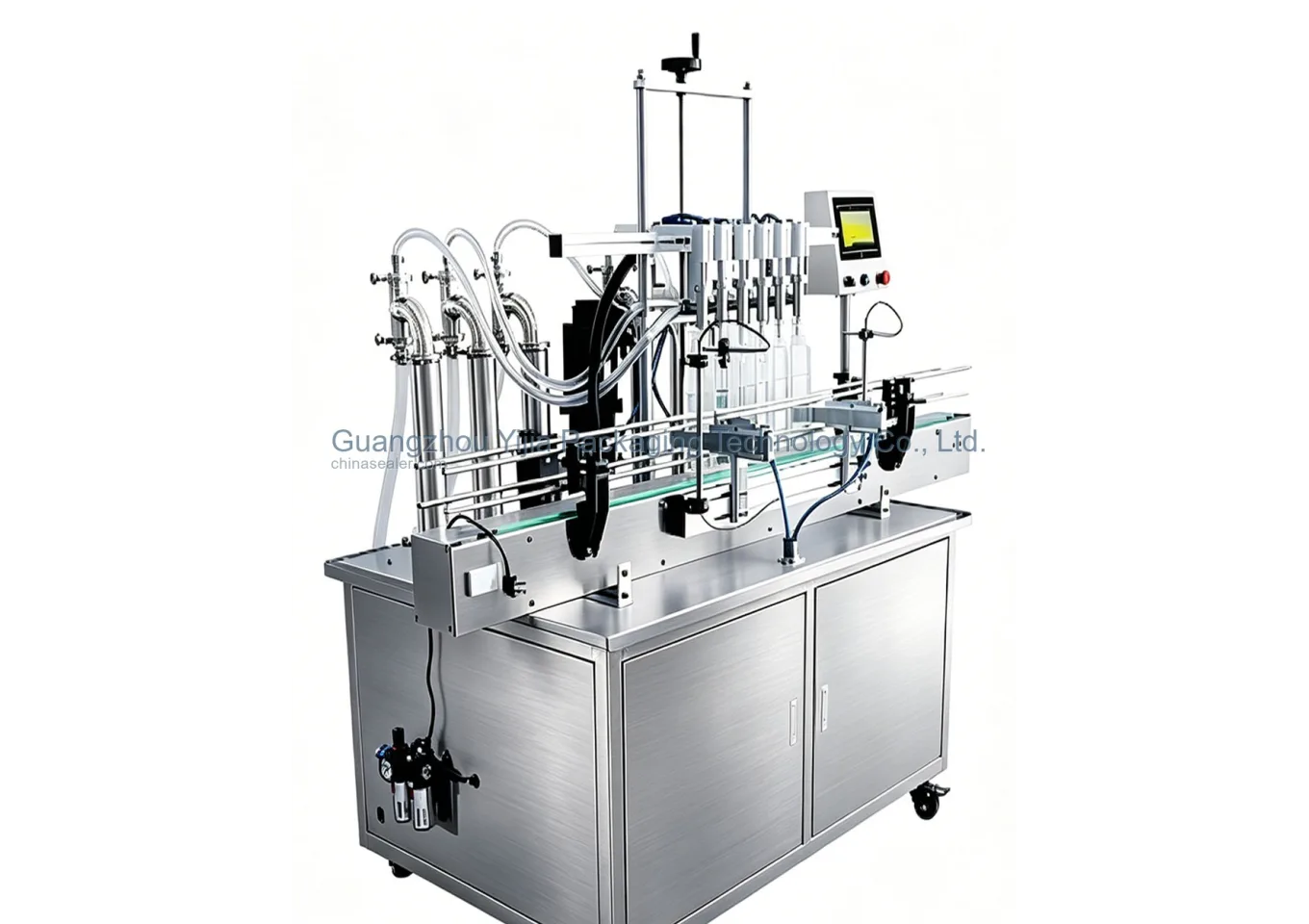

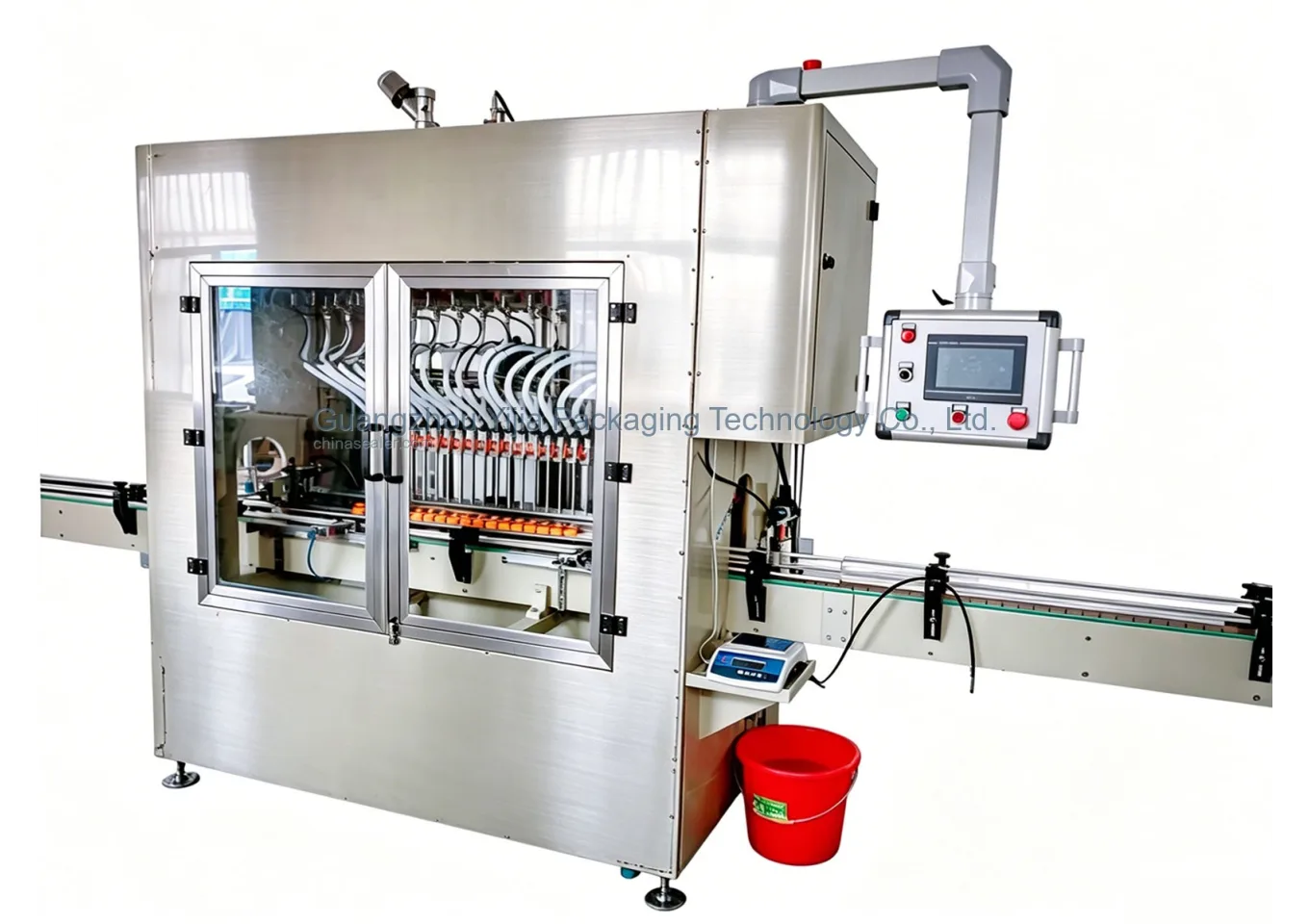

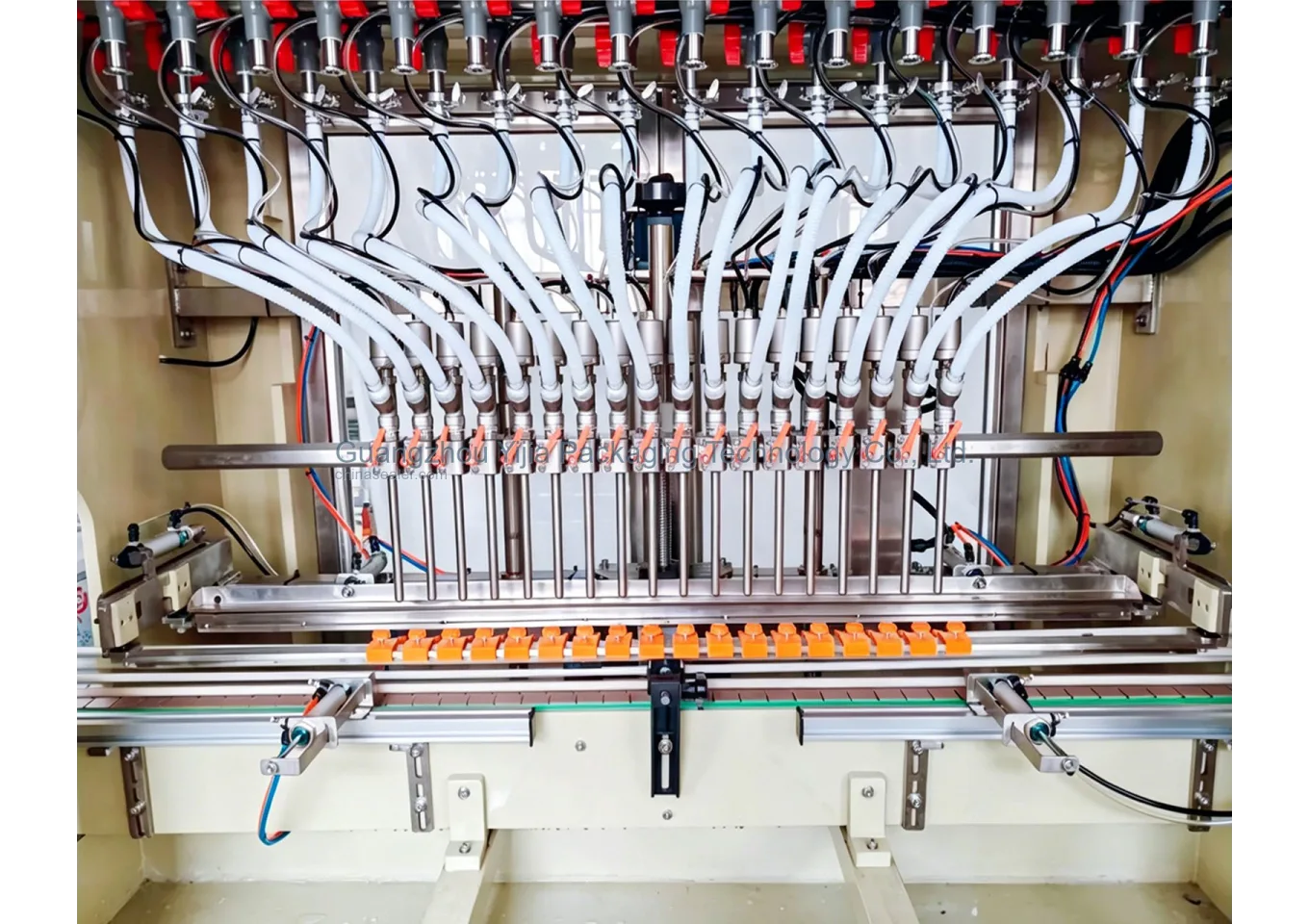

Liquid Filling Machine SampleUsed to check machine structure, samples, and configuration; final subject to project confirmation documents.

Technical parameters

Model: YJ-GZ-ZD390
Standard Output / Capacity: Confirmed based on container size, material state, process, number of stations, and target speed. 30–40 bottles/min
Machine Structure / Automation: Can be configured as benchtop, semi-automatic, fully automatic, or in-line according to project.
Applicable Containers / Packaging Format: Bottles, pails, cans, and small containers
Applicable Size Range: Confirmed based on sample dimensions, mouth diameter, height, and sealing edge width.
Applicable Products / Contents: Food, sauces, daily chemicals, cosmetics, medical consumables, and chemical packaging
Packaging Materials / Consumables: Consumables and accessories confirmed based on samples and final process.
Core Process: Quantitative filling.
Tooling / Changeover: Configure molds, fixtures, or changeover parts according to sample dimensions and changeover requirements.

Selection guide

Confirm configuration based on material viscosity, target filling volume, anti-drip requirements, and cleaning method
Filling nozzles, hoppers, and conveyors need sample testing or specification verification
Suitable for packaging forms such as bottles, pails, cans
Confirm based on filling volume, material state, number of heads, and loading/unloading method; subject to sample testing
Can be single-head, multi-head, weighing type, or integrated with sealing and labeling; adjust according to on-site cycle time
Can reserve interfaces for upstream/downstream conveying, inspection, or downstream packaging

Applications

Quantitative filling process for liquid, paste, and sauce projects
Sample, small batch, and mass production changeover for bottles, pails, cans
Adaptation testing and sealed sample confirmation for filling nozzles, hoppers, and conveyors
Adding new stations or retrofitting downstream sections in existing packaging lines
Export projects need to confirm voltage, language, spare parts, and packaging method first
Complete line configuration related to filling and dosing equipment

Frequently Asked Questions

Can this liquid filling machine be quoted directly as a standard machine? It can be initially judged based on standard structure, but not just by name. Need to confirm material viscosity, target filling volume, anti-d...
Why do we need to see samples and packaging materials first? Quantitative filling is affected by bottle, pail, can dimensions, filling nozzle, hopper, conveyor structure, and liquid, paste, sauce state. The clearer th...
Is this machine suitable for standalone or line integration? It can be single-head, multi-head, weighing type, or integrated with sealing and labeling. If there are upstream/downstream devices, need to simultaneously...
What should be reviewed before delivery? It is recommended to review sample test results, key dimensions, consumable specifications, power/air supply, cleaning and maintenance methods, and spare parts list to avoid mo...

Send samples and capacity requirements for a clearer solution

Material samples, container samples, and target filling volume
Key dimensions or on-site photos of bottles, pails, cans
Material, thickness, or specifications of filling nozzles, hoppers, and conveyors
State, weight, or filling volume of liquid, paste, or sauce
Target capacity, shifts, and whether integration into existing line is needed
Power supply, air supply, on-site space, and discharge direction
